PL PDP-1 Picosecond high-peak-power pulsed-diode-pumped Nd:YAG laser PCS-F Picosecond single-pulse correlator

PCS-F – picosecond single-pulse correlator (full correlation function scheme) TECHNICAL PARAMETRS Wavelength, nm 1064 Maximum pulse length (FWHM), ps 75 Dimensions (WхHхL), mm 225x110x240 Interface USB

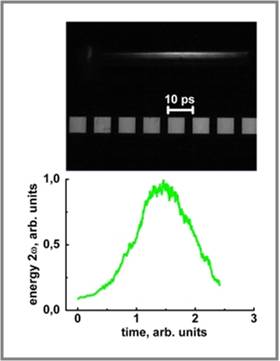

Correlator scheme: cylindrical telescope (1); optical delay plate (2); (3) second harmonic crystal (LiIO3); mirror (4); objective (5); CCD-camera (6) Photo: Images of second harmonic profile (on the top) and calibrating LED array (on the bottom); Diagram: Autocorrelation function of 25 ps pulse (FWHM)
